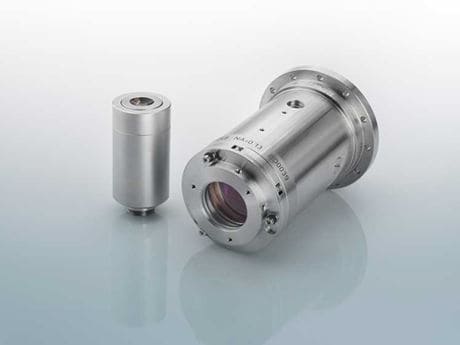

Customized UV Objective Lenses for Inspection Procedures in the Semiconductor Industry
UV objective lenses from Jenoptik meet the strictest requirements and are considered to be a determining factor in the performance of optical process control systems in the semiconductor industry.
Jenoptik offers custom-made UV objective lenses and components, as well as individual optics modules for quality assurance. These are used successfully in process control systems for the semiconductor industry and are considered to be a determining factor for performance in this area.
Our ultra-precise production and system inspection procedures guarantee maximum image quality and thus a high waver throughput for users, for example. The UV objective lenses and optics modules can be used for the latest developments in laser sources. They cover the entire DUV wavelength range, with the focus on 193 nm and 266 nm. At these wavelengths (DUV), polarization and wavefront errors are within the technologically feasible range.
Jenoptik offers the entire process chain — from planning the UV objective lenses to series production. We develop objective lenses for inspection according to your specific requirements, and we also implement feasibility studies. We work with you to define the service description so that it meets your requirements exactly. During production, our experts use ultra-precise inspection methods to adapt the systems to the target specifications. We then subject the UV objective lenses to thermal and mechanical stress in order to prove their environmental stability with regard to storage, transport and installation. Once you are satisfied with our product, we can of course also produce the UV objective lenses in series production.
Our ultra-precise production and system inspection procedures guarantee maximum image quality and thus a high waver throughput for users, for example. The UV objective lenses and optics modules can be used for the latest developments in laser sources. They cover the entire DUV wavelength range, with the focus on 193 nm and 266 nm. At these wavelengths (DUV), polarization and wavefront errors are within the technologically feasible range.
Jenoptik offers the entire process chain — from planning the UV objective lenses to series production. We develop objective lenses for inspection according to your specific requirements, and we also implement feasibility studies. We work with you to define the service description so that it meets your requirements exactly. During production, our experts use ultra-precise inspection methods to adapt the systems to the target specifications. We then subject the UV objective lenses to thermal and mechanical stress in order to prove their environmental stability with regard to storage, transport and installation. Once you are satisfied with our product, we can of course also produce the UV objective lenses in series production.
Benefits
- Customized: UV objective lenses optimally adapted to your requirements
- Validation: In the installation position and under environmental and application conditions
- Maximum image quality: Wavefront errors of <0.035 λ with DUV wavelengths and polarization extinction ratio (PER) of up to 1:1000
- Determining factor for performance: Already successfully used in optical process control systems
- Experience: We have been a partner in the semiconductor supply industry for more than 25 years
- Long service life: Low-contamination mounting and coating technology
Fields of Application
- Semiconductor industry: Waver and mask inspection

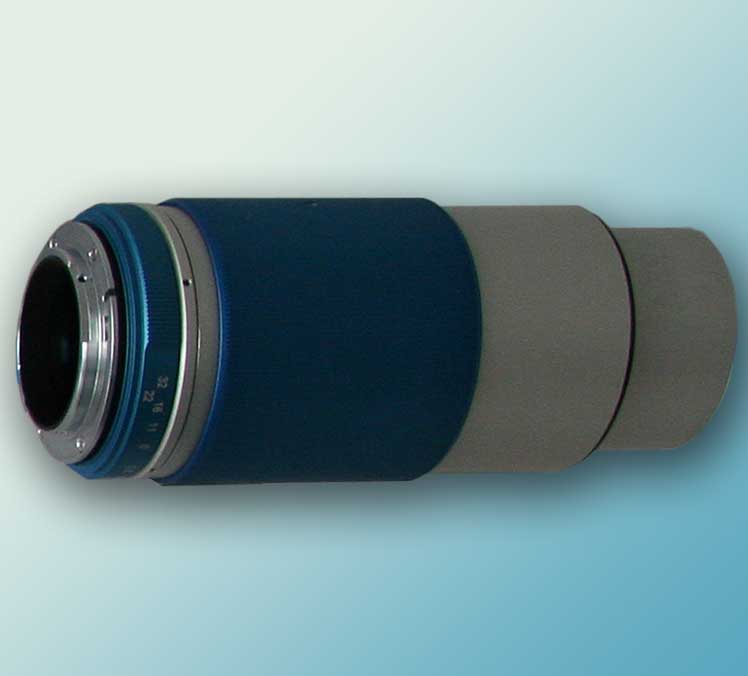

Product recommendations
Please contact our experts for advice.
