Product feature

• Wavelength: 808 - 1470nm
• Output power: 20 - 400W
• Operation mode: CW / QCW
• Cooling: actively cooled / passively cooled / passively cooled with air / passively cooled with integrated TEC / passively cooled with tap water
• Fiber core diameter: 0.2 - 0.6mm

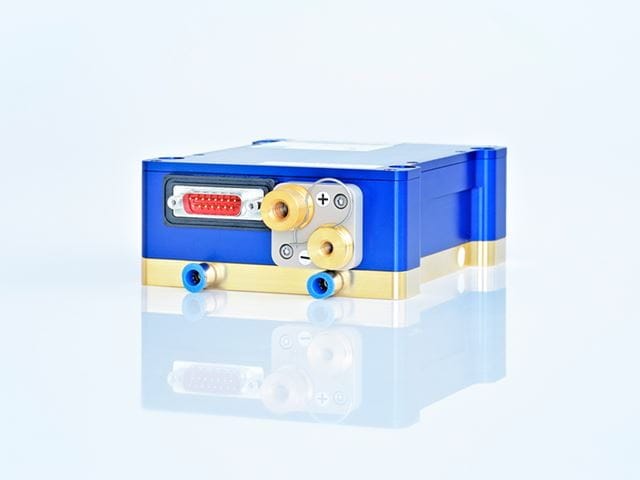

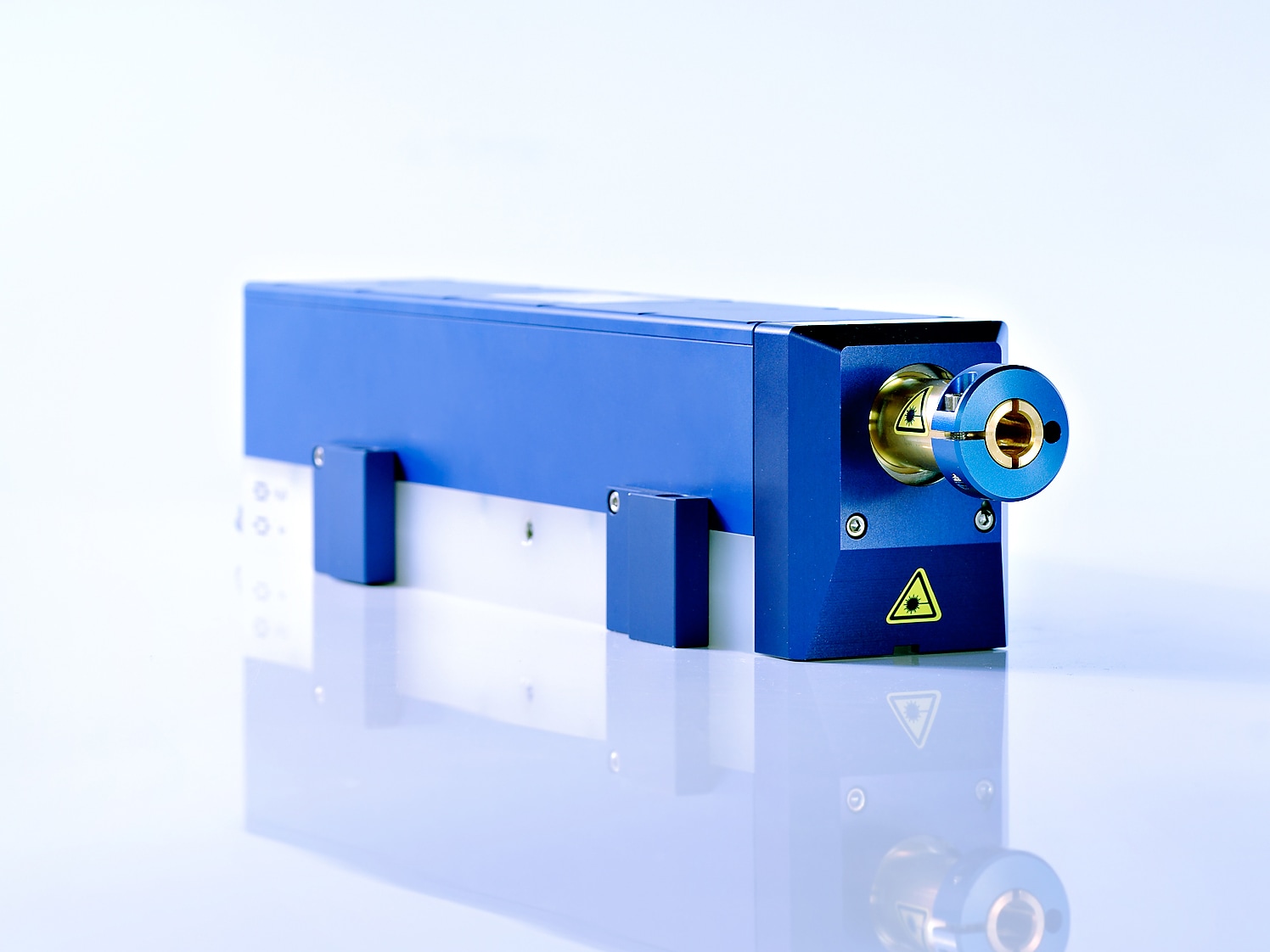

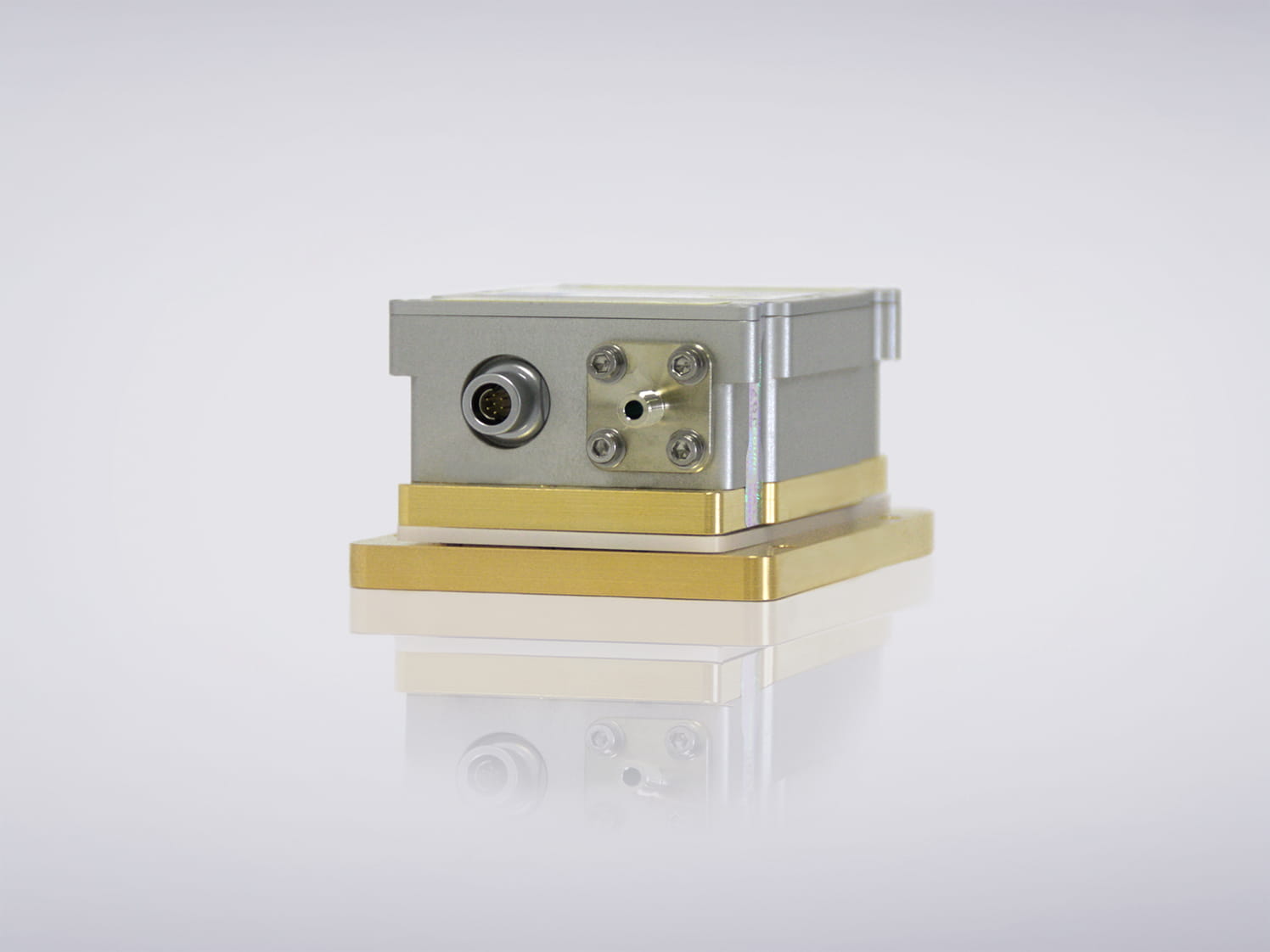

Our fiber-coupled diode laser modules can be used to produce an optical output power of 4 W to 400 W in cw mode and 120 W in qcw mode. They are also available in free space format. Depending on their power, these modules are cooled using water, TEC or air.

Because of their reliability and efficiency, our modules are successfully used as beam sources in areas such as solid-state laser pumps, material processing and medicine. They have a robust and compact design and have proven their worth in daily use.

We offer standard wavelengths of 808 nm, 940 nm and 980 nm. The fiber core diameter of our diode lasers is 200 µm, 400 µm or 600 µm. On request, we will be happy to adapt the parameters to your individual requirements. You can also choose between pilot lasers, monitor diodes and integrated Peltier elements.
