Jenoptik presents new solutions for integrated quality assurance at Control 2024

The new Gageline complements the HOMMEL ETAMIC pneumatic tester product family. Pneumatic testers are known for their excellent repeatability and high accuracy – especially in production environments. However, until now these devices have not offered any flexibility with regard to multiple measurement requirements.

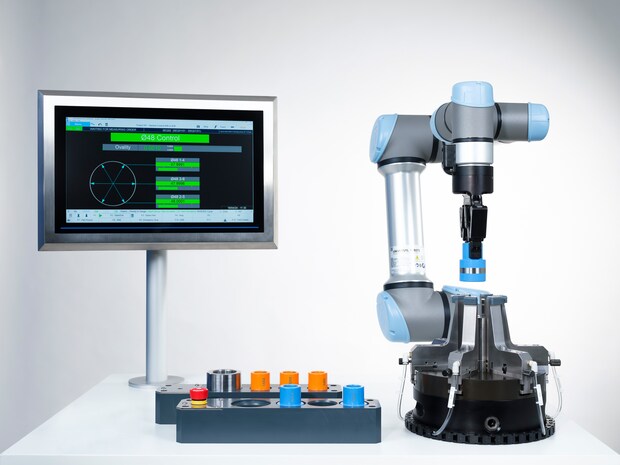

With the new Gageline, precisely this flexibility has been created, making it a promising solution for many areas of application. For example, it is able to measure shaft parts such as pins or cones with diameters from 10 to 130 mm. The same base can also be configured for testing other workpieces, such as rings from 20 to 150 mm in diameter. In addition, the Gageline can be combined with a collaborative robot to provide a complete, flexible and automated solution.

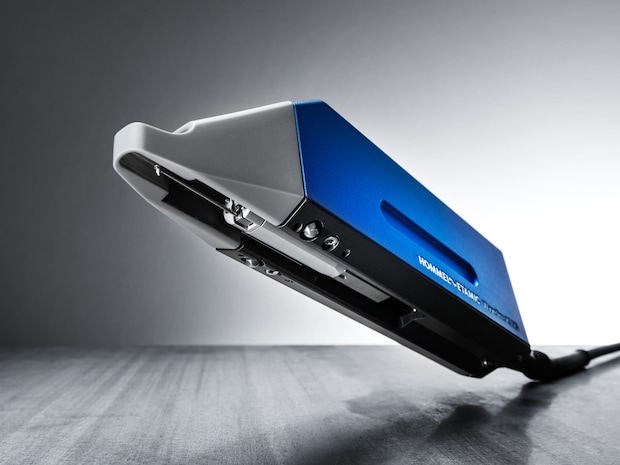

In the field of roughness and contour measurement technology, the new W40 hand-held measuring device will complement the Waveline product family. It offers a handy feed unit that can be used for all common roughness measurement tasks. The W40 device can optionally be used as a compact measuring station and can be used both in the measuring room and on the shop floor. The motorized zero point search for automatic positioning of the probe, the variable measuring speed, measurements in all positions and orientations – even overhead – are some of the advantages of the new product.

Above all, the product impresses with its PC-based evaluation option with the “Evovis Mobile” software. This covers all current standards, including the new DIN EN ISO 21920 series of standards. As it clearly displays the results of various standards, the software offers a considerable advantage and thus meets the future challenges in roughness measurement technology.

The industry-renowned Opticline C series is being expanded to include measuring systems for larger and heavier workpieces, a wide range of automation solutions and additional multi-sensor applications.

The addition of the C923 and C1223 variants means that the proven technology platform of the Opticline C series can now also be used for large and heavy workpieces. This means that customers from market segments such as e-mobility, energy generation, commercial vehicle and aerospace can now also benefit from the highest accuracy and widest range of functionality in optical shaft measurement technology.

With integrated machine monitoring and compensation algorithms for temperatures and ambient conditions, solutions for fully automatic workpiece loading and independent calibration sequences, automation solutions can be individually scaled and long-term stable process reliability can be guaranteed even in harsh environmental conditions.

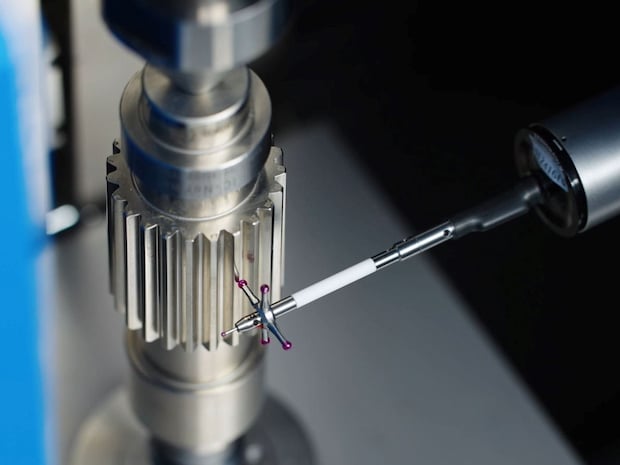

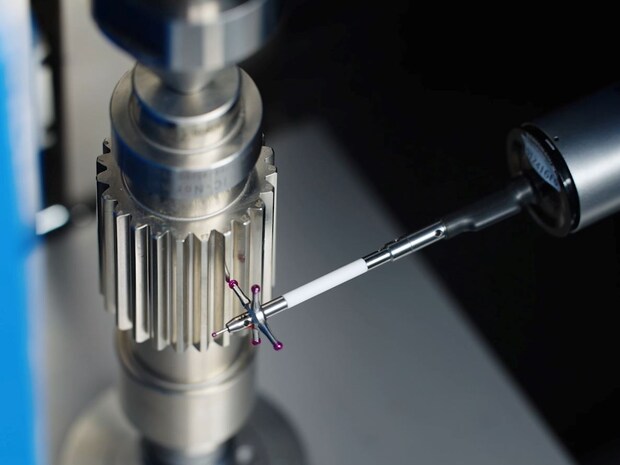

With the optional T3D tactile sensor, the Opticline systems can be expanded into a complete multi-sensor shaft measuring device. This means that all tactile and optical features can be recorded with high precision within a single measuring sequence in just seconds, and cycle times are significantly reduced. With the integrated option for gear measurement, typical gear features for spur and helical gears can now also be measured, which further increases the flexibility of the Opticline measuring system and enables fast process-oriented quality statements. Established functions such as automatic probe arm changes and system checks also increase efficiency directly in the production process.

The advanced Tolaris Optic 6 measurement and evaluation software provides support for programming all the extensive new functions. The highlight of the new software version is a clearer user interface with improved functions, which makes programming and operator self-monitoring even easier and faster in just a few minutes.

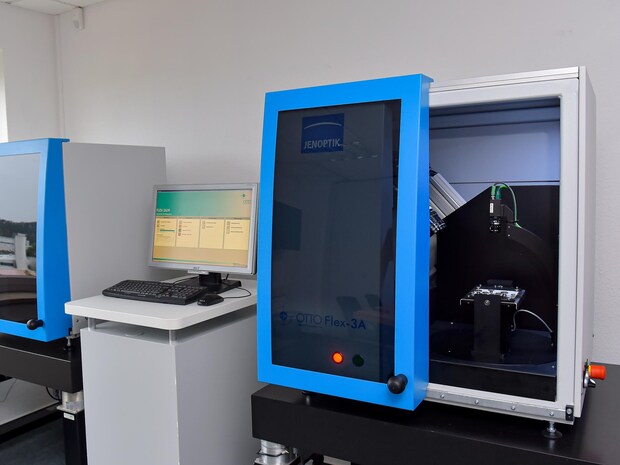

Otto Vision stands for high-end industrial image processing applications. The Jenoptik unit specializes in optical 2D and 3D inspection and test systems for inline inspection, surface inspection and position detection as well as optical 3D production control. One of the product highlights is the FLEX-3A, a 3D stripe light scanner for the analysis of initial samples and prototypes as well as automated random sample inspection in the production area. The measuring system is specially designed for the high-precision and automated inspection of small parts.

The PSS-40/LCLW inspection and sorting station with laser cutting and laser welding is a further development of the PSS-40 inspection station, which has already been established on the market. The manual or semi-automatic process of mechanical cutting and subsequent joining of the carrier strip was replaced by a fully automated laser cutting and laser welding process.
