Name: Vertical stacks to increase output power in CW mode
Brand: Jenoptik

Jenoptik stacks up to 12 laser bars to form actively cooled stacks for CW mode.

Product feature

Wavelength: 808 - 980nm
Output power: 128 - 1440W
Operation mode: CW
Cooling: actively cooled / passively cooled
Collimation: fast axis / fast axis and slow axis / without

Our vertical stacks can be used to increase the optical output power of your diode laser. To do so, we stack up to 12 mounted laser bars to form a diode laser stack or an assembly. Each of these laser bars individually supplies up to 120watts in cw mode. Because of the small gaps between the laser bars, you obtain maximum brilliance from the stacks, enabling you to work highly effective. You can choose between laser diode stacks with a Fast-Axis (FA) or combined Fast-Axis/Slow-Axis (SA) collimation.

Benefits

Best price/performance ratio: Because of the small gaps between the laser bars.
Powerful: Each of the 12 laser bars individually supplies up to 120 watts in cw mode.
Flexible: CW or QCW mode.
Easy to integrate: Compact designs.

Fields of Application

Material processing: Curing of metals, annealing.
Medical technology: Esthetics, dermatology.
Industry: Pumping source for fiber lasers and solid-state lasers.
Science and research: Pumping source for fiber lasers.

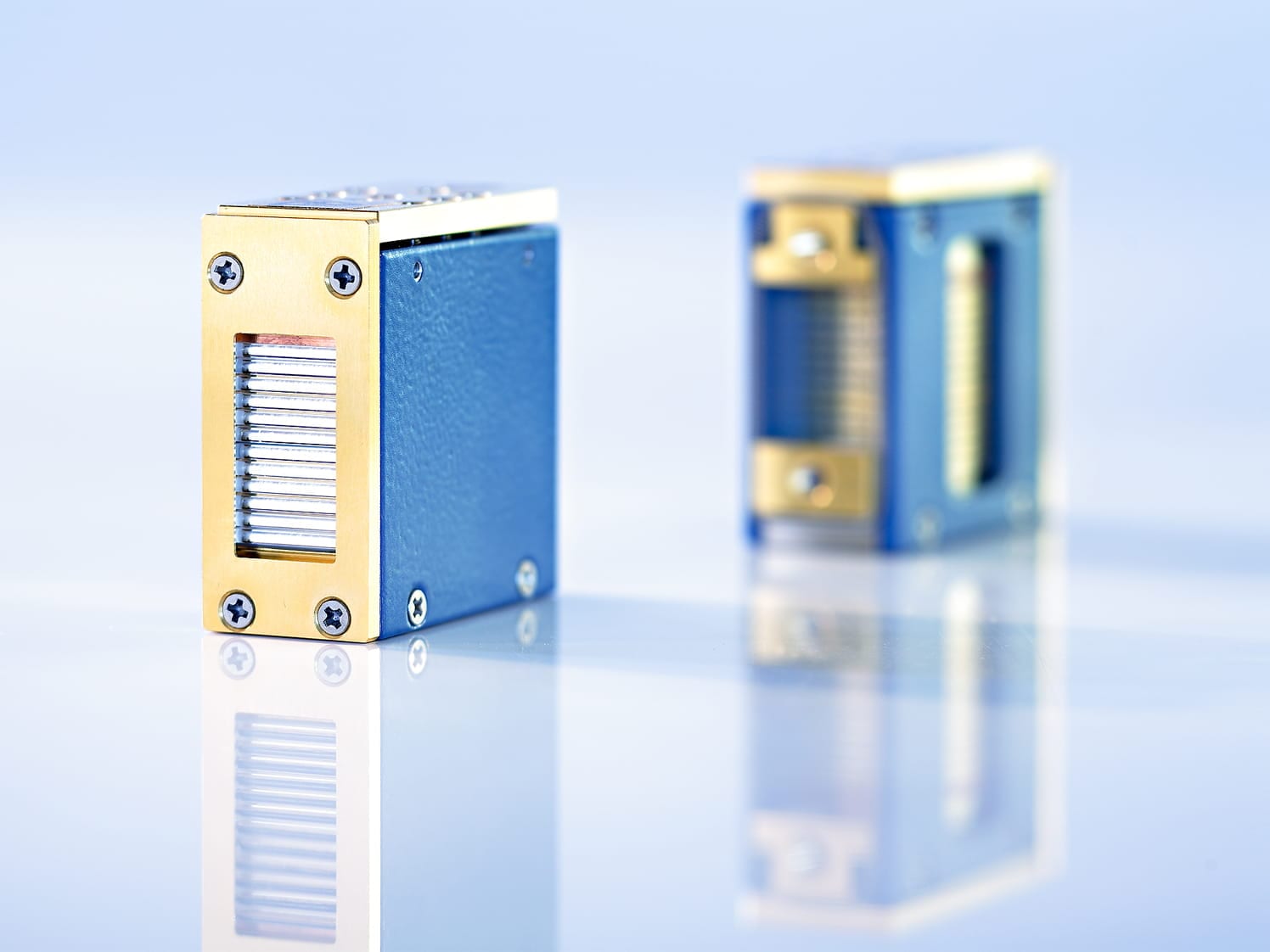

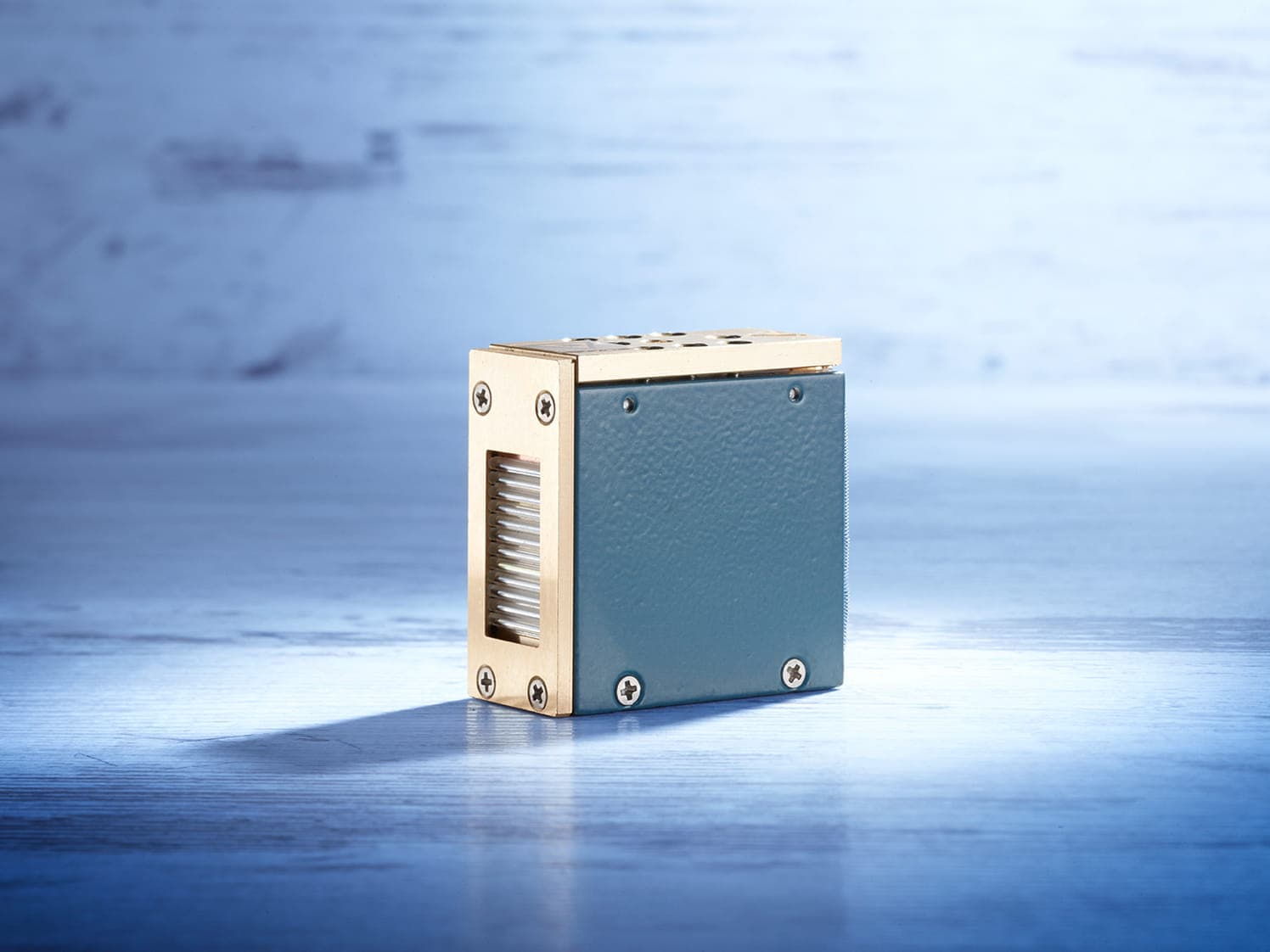

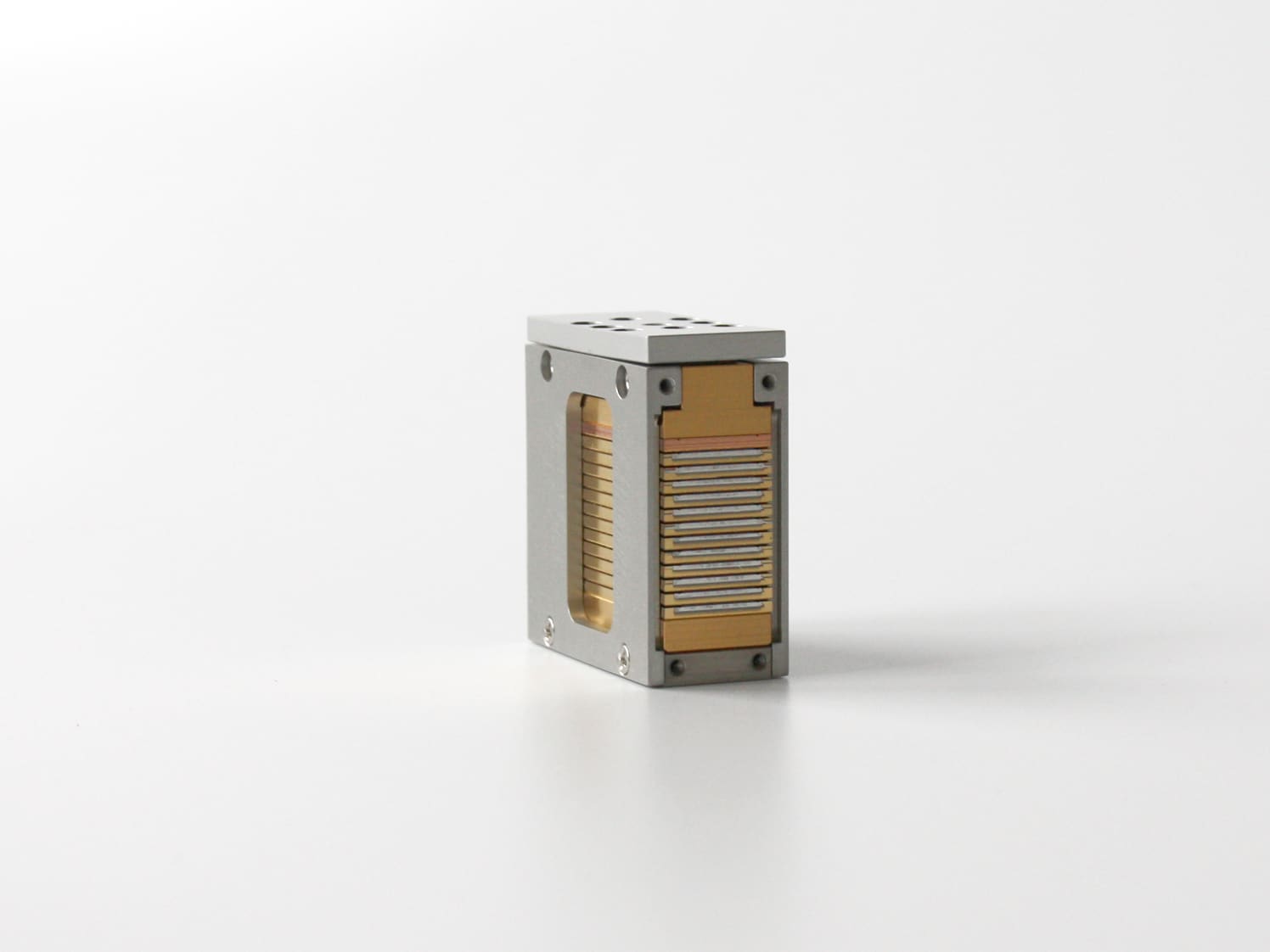

Product Views

vorheriges Bild anzeigen nächste Bild anzeigen

Downloads

Product Overview Diode Laser Stacks (PDF | 0,38 MB)

Variation of Products

Wavelength in nm	Output power in W	Operation mode	Cooling	Collimation	Product name / data sheet
808	128	CW	actively cooled	fast axis and slow axis	JOLD-128-CABN-4A
808	135	CW	actively cooled	fast axis	JOLD-135-CAFN-3A
808	150	CW	actively cooled	without	JOLD-150-CANN-3A
808	180	CW	actively cooled	fast axis	JOLD-180-CAFN-4A
808	192	CW	actively cooled	fast axis and slow axis	JOLD-192-CABN-6A
808	200	CW	actively cooled	fast axis and slow axis	JOLD-200-CABN-4A
808	200	CW	actively cooled	without	JOLD-200-CANN-4A
808	216	CW	actively cooled	fast axis	JOLD-216-CAFN-3A
808	225	CW	actively cooled	fast axis	JOLD-225-CAFN-5A
808	240	CW	actively cooled	without	JOLD-240-CANN-3A
808	250	CW	actively cooled	without	JOLD-250-CANN-5A
808	256	CW	actively cooled	fast axis and slow axis	JOLD-256-CABN-8A
808	270	CW	actively cooled	fast axis	JOLD-270-CAFN-6A
808	288	CW	actively cooled	fast axis	JOLD-288-CAFN-4A
808	300	CW	actively cooled	fast axis and slow axis	JOLD-300-CABN-6A
808	300	CW	actively cooled	without	JOLD-300-CANN-6A
808	310	CW	passively cooled	without	JOLD-310-HS-4L
808	320	CW	actively cooled	fast axis and slow axis	JOLD-320-CABN-10A
808	320	CW	actively cooled	without	JOLD-320-CANN-4A
808	360	CW	actively cooled	fast axis	JOLD-360-CAFN-5A
808	360	CW	actively cooled	fast axis	JOLD-360-CAFN-8A
808	384	CW	actively cooled	fast axis and slow axis	JOLD-384-CABN-12A
808	400	CW	actively cooled	fast axis and slow axis	JOLD-400-CABN-8A
808	400	CW	actively cooled	without	JOLD-400-CANN-5A
808	400	CW	actively cooled	without	JOLD-400-CANN-8A
808	432	CW	actively cooled	fast axis	JOLD-432-CAFN-6A
808	450	CW	actively cooled	fast axis	JOLD-450-CAFN-10A
808	480	CW	actively cooled	without	JOLD-480-CANN-6A
808	500	CW	actively cooled	fast axis and slow axis	JOLD-500-CABN-10A
808	500	CW	actively cooled	without	JOLD-500-CANN-10A
808	540	CW	actively cooled	fast axis	JOLD-540-CAFN-12A-808nm
808	576	CW	actively cooled	fast axis	JOLD-576-CAFN-8A
808	600	CW	actively cooled	fast axis and slow axis	JOLD-600-CABN-12A
808	600	CW	actively cooled	without	JOLD-600-CANN-12A
808	640	CW	actively cooled	without	JOLD-640-CANN-8A
808	720	CW	actively cooled	fast axis	JOLD-720-CAFN-10A
808	800	CW	actively cooled	without	JOLD-800-CANN-10A
808	864	CW	actively cooled	fast axis	JOLD-864-CAFN-12A
808	960	CW	actively cooled	without	JOLD-960-CANN-12A
940	128	CW	actively cooled	fast axis and slow axis	JOLD-128-CABN-4A
940	162	CW	actively cooled	fast axis	JOLD-162-CAFN-3A
940	180	CW	actively cooled	without	JOLD-180-CANN-3A
940	192	CW	actively cooled	fast axis and slow axis	JOLD-192-CABN-6A
940	200	CW	actively cooled	fast axis and slow axis	JOLD-200-CABN-4A
940	216	CW	actively cooled	fast axis	JOLD-216-CAFN-3A
940	216	CW	actively cooled	fast axis	JOLD-216-CAFN-4A
940	240	CW	actively cooled	without	JOLD-240-CANN-4A
940	256	CW	actively cooled	fast axis and slow axis	JOLD-256-CABN-8A
940	270	CW	actively cooled	fast axis	JOLD-270-CAFN-3A
940	270	CW	actively cooled	fast axis	JOLD-270-CAFN-5A
940	288	CW	actively cooled	fast axis	JOLD-288-CAFN-4A
940	300	CW	actively cooled	fast axis and slow axis	JOLD-300-CABN-6A
940	300	CW	actively cooled	without	JOLD-300-CANN-3A
940	300	CW	actively cooled	without	JOLD-300-CANN-5A
940	310	CW	passively cooled	without	JOLD-310-HS-4L
940	320	CW	actively cooled	fast axis and slow axis	JOLD-320-CABN-10A
940	324	CW	actively cooled	fast axis	JOLD-324-CAFN-6A
940	330	CW	actively cooled	fast axis	JOLD-330-CAFN-3A
940	360	CW	actively cooled	fast axis	JOLD-360-CAFN-4A
940	360	CW	actively cooled	fast axis	JOLD-360-CAFN-5A
940	360	CW	actively cooled	without	JOLD-360-CANN-3A
940	360	CW	actively cooled	without	JOLD-360-CANN-6A
940	384	CW	actively cooled	fast axis and slow axis	JOLD-384-CABN-12A
940	400	CW	actively cooled	fast axis and slow axis	JOLD-400-CABN-8A
940	400	CW	actively cooled	without	JOLD-400-CANN-4A
940	432	CW	actively cooled	fast axis	JOLD-432-CAFN-6A
940	432	CW	actively cooled	fast axis	JOLD-432-CAFN-8A
940	440	CW	actively cooled	fast axis	JOLD-440-CAFN-4A
940	450	CW	actively cooled	fast axis	JOLD-450-CAFN-5A
940	480	CW	actively cooled	without	JOLD-480-CANN-4A
940	480	CW	actively cooled	without	JOLD-480-CANN-4A
940	480	CW	actively cooled	without	JOLD-480-CANN-8A
940	500	CW	actively cooled	fast axis and slow axis	JOLD-500-CABN-10A
940	500	CW	actively cooled	without	JOLD-500-CANN-5A
940	540	CW	actively cooled	fast axis	JOLD-540-CAFN-10A
940	540	CW	actively cooled	fast axis	JOLD-540-CAFN-6A
940	550	CW	actively cooled	fast axis	JOLD-550-CAFN-5A
940	576	CW	actively cooled	fast axis	JOLD-576-CAFN-8A
940	600	CW	actively cooled	fast axis and slow axis	JOLD-600-CABN-12A
940	600	CW	actively cooled	without	JOLD-600-CANN-10A
940	600	CW	actively cooled	without	JOLD-600-CANN-5A
940	600	CW	actively cooled	without	JOLD-600-CANN-6A
940	648	CW	actively cooled	fast axis	JOLD-648-CAFN-12A
940	660	CW	actively cooled	fast axis	JOLD-660-CAFN-6A
940	720	CW	actively cooled	fast axis	JOLD-720-CAFN-10A
940	720	CW	actively cooled	fast axis	JOLD-720-CAFN-8A
940	720	CW	actively cooled	without	JOLD-720-CANN-12A
940	720	CW	actively cooled	without	JOLD-720-CANN-6A
940	800	CW	actively cooled	without	JOLD-800-CANN-8A
940	864	CW	actively cooled	fast axis	JOLD-864-CAFN-12A
940	880	CW	actively cooled	fast axis	JOLD-880-CAFN-8A
940	900	CW	actively cooled	fast axis	JOLD-900-CAFN-10A
940	960	CW	actively cooled	without	JOLD-960-CANN-8A
940	1000	CW	actively cooled	without	JOLD-1000-CANN-10A
940	1080	CW	actively cooled	fast axis	JOLD-1080-CAFN-12A
940	1100	CW	actively cooled	fast axis	JOLD-1100-CAFN-10A
940	1200	CW	actively cooled	without	JOLD-1200-CANN-10A
940	1200	CW	actively cooled	without	JOLD-1200-CANN-12A
940	1320	CW	actively cooled	fast axis	JOLD-1320-CAFN-12A
940	1440	CW	actively cooled	without	JOLD-1440-CANN-12A
980	128	CW	actively cooled	fast axis and slow axis	JOLD-128-CABN-4A
980	135	CW	actively cooled	fast axis	JOLD-135-CAFN-3A
980	150	CW	actively cooled	without	JOLD-150-CANN-3A
980	180	CW	actively cooled	fast axis	JOLD-180-CAFN-4A
980	192	CW	actively cooled	fast axis and slow axis	JOLD-192-CABN-6A
980	200	CW	actively cooled	fast axis and slow axis	JOLD-200-CABN-4A
980	200	CW	actively cooled	without	JOLD-200-CANN-4A
980	216	CW	actively cooled	fast axis	JOLD-216-CAFN-3A
980	225	CW	actively cooled	fast axis	JOLD-225-CAFN-5A
980	250	CW	actively cooled	without	JOLD-250-CANN-5A
980	256	CW	actively cooled	fast axis and slow axis	JOLD-256-CABN-8A
980	270	CW	actively cooled	fast axis	JOLD-270-CAFN-3A
980	270	CW	actively cooled	fast axis	JOLD-270-CAFN-6A
980	288	CW	actively cooled	fast axis	JOLD-288-CAFN-4A
980	300	CW	actively cooled	fast axis and slow axis	JOLD-300-CABN-6A
980	300	CW	actively cooled	without	JOLD-300-CANN-3A
980	300	CW	actively cooled	without	JOLD-300-CANN-6A
980	320	CW	actively cooled	fast axis and slow axis	JOLD-320-CABN-10A
980	330	CW	actively cooled	fast axis	JOLD-330-CAFN-3A
980	360	CW	actively cooled	fast axis	JOLD-360-CAFN-4A
980	360	CW	actively cooled	fast axis	JOLD-360-CAFN-5A
980	360	CW	actively cooled	fast axis	JOLD-360-CAFN-8A
980	360	CW	actively cooled	without	JOLD-360-CANN-3A
980	384	CW	actively cooled	fast axis and slow axis	JOLD-384-CABN-12A
980	400	CW	actively cooled	fast axis and slow axis	JOLD-400-CABN-8A
980	400	CW	actively cooled	without	JOLD-400-CANN-4A
980	400	CW	actively cooled	without	JOLD-400-CANN-8A
980	432	CW	actively cooled	fast axis	JOLD-432-CAFN-6A
980	440	CW	actively cooled	fast axis	JOLD-440-CAFN-4A
980	450	CW	actively cooled	fast axis	JOLD-450-CAFN-10A
980	450	CW	actively cooled	fast axis	JOLD-450-CAFN-5A
980	500	CW	actively cooled	fast axis and slow axis	JOLD-500-CABN-10A
980	500	CW	actively cooled	without	JOLD-500-CANN-10A
980	500	CW	actively cooled	without	JOLD-500-CANN-5A
980	540	CW	actively cooled	fast axis	JOLD-540-CAFN-12A
980	540	CW	actively cooled	fast axis	JOLD-540-CAFN-6A
980	550	CW	actively cooled	fast axis	JOLD-550-CAFN-5A
980	576	CW	actively cooled	fast axis	JOLD-576-CAFN-8A
980	600	CW	actively cooled	fast axis and slow axis	JOLD-600-CABN-12A
980	600	CW	actively cooled	without	JOLD-600-CANN-12A
980	600	CW	actively cooled	without	JOLD-600-CANN-5A
980	600	CW	actively cooled	without	JOLD-600-CANN-6A
980	660	CW	actively cooled	fast axis	JOLD-660-CAFN-6A
980	720	CW	actively cooled	fast axis	JOLD-720-CAFN-10A
980	720	CW	actively cooled	fast axis	JOLD-720-CAFN-8A
980	720	CW	actively cooled	without	JOLD-720-CANN-6A
980	800	CW	actively cooled	without	JOLD-800-CANN-8A
980	864	CW	actively cooled	fast axis	JOLD-864-CAFN-12A
980	880	CW	actively cooled	fast axis	JOLD-880-CAFN-8A
980	900	CW	actively cooled	fast axis	JOLD-900-CAFN-10A
980	960	CW	actively cooled	without	JOLD-960-CANN-8A
980	1000	CW	actively cooled	without	JOLD-1000-CANN-10A
980	1080	CW	actively cooled	fast axis	JOLD-1080-CAFN-12A
980	1100	CW	actively cooled	fast axis	JOLD-1100-CAFN-10A
980	1200	CW	actively cooled	without	JOLD-1200-CANN-10A
980	1200	CW	actively cooled	without	JOLD-1200-CANN-12A
980	1320	CW	actively cooled	fast axis	JOLD-1320-CAFN-12A
980	1440	CW	actively cooled	without	JOLD-1440-CANN-12A
